FLIR
Pinza amperimétrica flexible, voltaje CA, corriente CA
Pinza amperimétrica flexible, voltaje CA, corriente CA
No se pudo cargar la disponibilidad de retiro

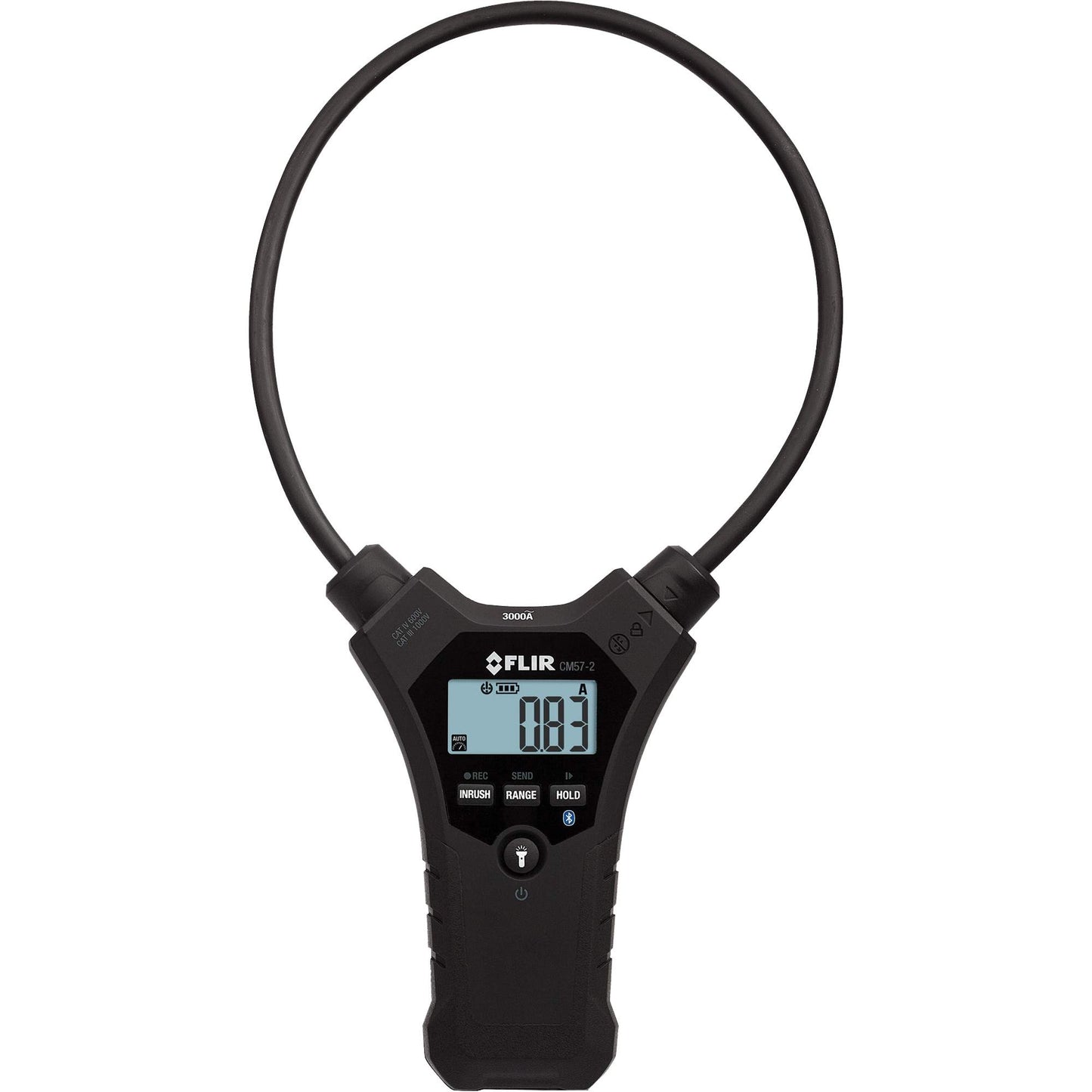

• A flexible clamp meter designed for difficult current measurements
• With its 18-inch (45.72 cm) flexible coil clamp, the CM57-2 allows you to take measurements in tight spots, making it ideal for multiple-conductor measurements and double-wrap requirements
• The meter also features dual LED work lights for better visibility, and AC current ranges from 30 A to 3000 A
• Stream live data in real time from the CM57-2 to your mobile device over Bluetooth using the METERLiNK® app to visually compare log files, customize alarm thresholds, create reports, and share readings instantly with team members
• Wrap the 18-inch flexible coil clamp around multiple conductors or large cables
• Dual LED worklights provide better visibility in dark or poorly lit areas so you can work more efficiently and safely
• Max. Conductor Diameter
Specifications:
Voltage Readings: AC
Current Readings: AC
AC Current Bandwidth: 45–500 Hz (Sine Wave)
Basic AC Current Accuracy (of Reading): ±3.0% + 5 Digits
Flex Coil Length: 45 cm (18 in.)
Flex Coil Tip Diameter: 13 mm (0.5 in.)
Max. Conductor Diameter: 12 cm (4.7 in.)
Max. AC Current: 3000 A AC
Max. Bluetooth Range: 10 m (32 ft)
Battery Life: 100 Hours with Alkaline Batteries (Calculated)
Battery Type: (2) 1.5 V AAA
