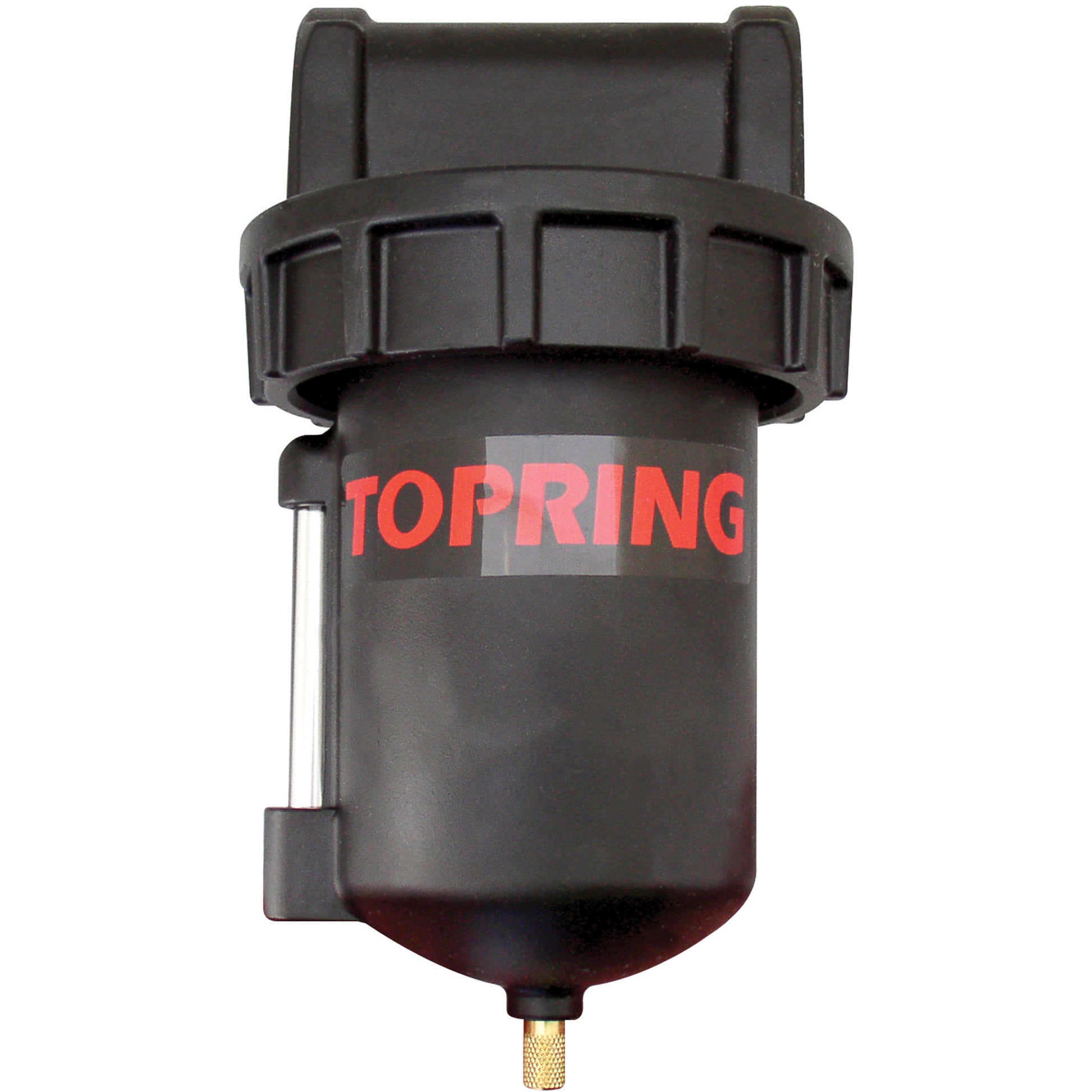

Filters, Modular, 1-1/2" NPT, Automatic Drain, For Water

• HEAVY-DUTY, 40-MICRON FILTRATION
• High flow capacity reduces costly pressure drop
• Compact size allows greater design flexibility
• Lightweight for ease of installation
• Features recyclable, biodegradable, and/or recycled content
• Max. Air Flow

Specifications:
Connection Size: 1-1/2" NPT
Max. PSI: 175 PSI
Drain Type: Automatic
Type: Modular
Material Filtered: Water
Filtration Size (Microns): 40
Max. Air Flow: 380 SCFM @ 100 PSI
Max Temp.°F: 150
Bowl Type: Zinc
Bowl Capacity: 16 fl. Oz.
H": 9.453125
W": 5.1875
Wt. Lbs.: 7
