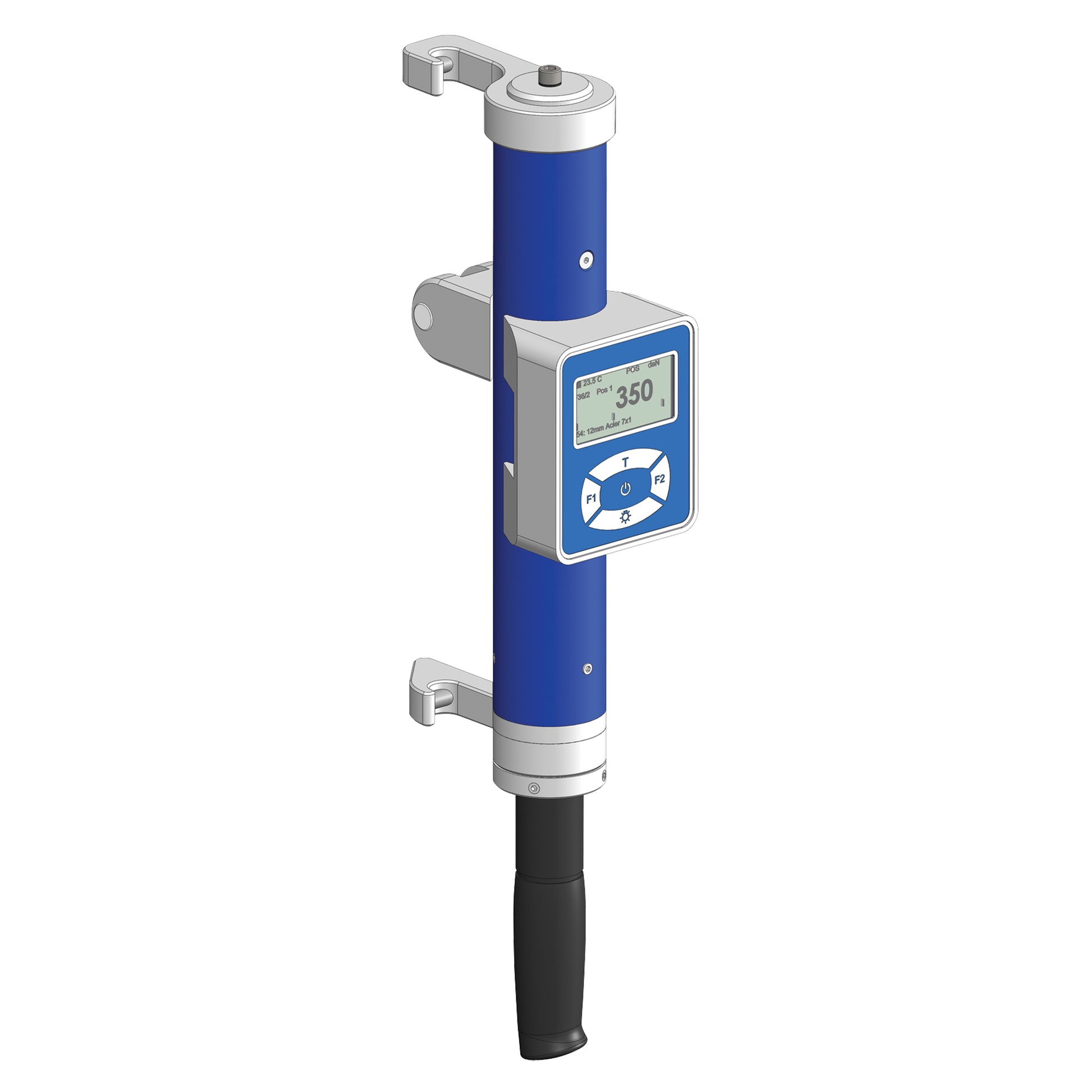

Dynarope Small Capacity Tensiometer HF 37/1/LPT

• Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed
• Fits directly onto the tensioned wire rope and is simply held in position by turning a handle
• Device is comprised of a load cell with strain gauges and a display driven by a microprocessor
• Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope
• Accuracy:<1% of nominal capacity
• Operating temperature from -4 to 140°F (-20 to 60°C)
• Protection: IP 65 (NEMA 4)

Specifications:
Working Load Limit Range: 200 lbs - 3000 lbs. (100 kg - 1500 kg.)
Wire Rope Diameter: 1/2"
Increments: 2 lbs. (1 kg)
Min. Wire Rope Diameter: 3/16"
