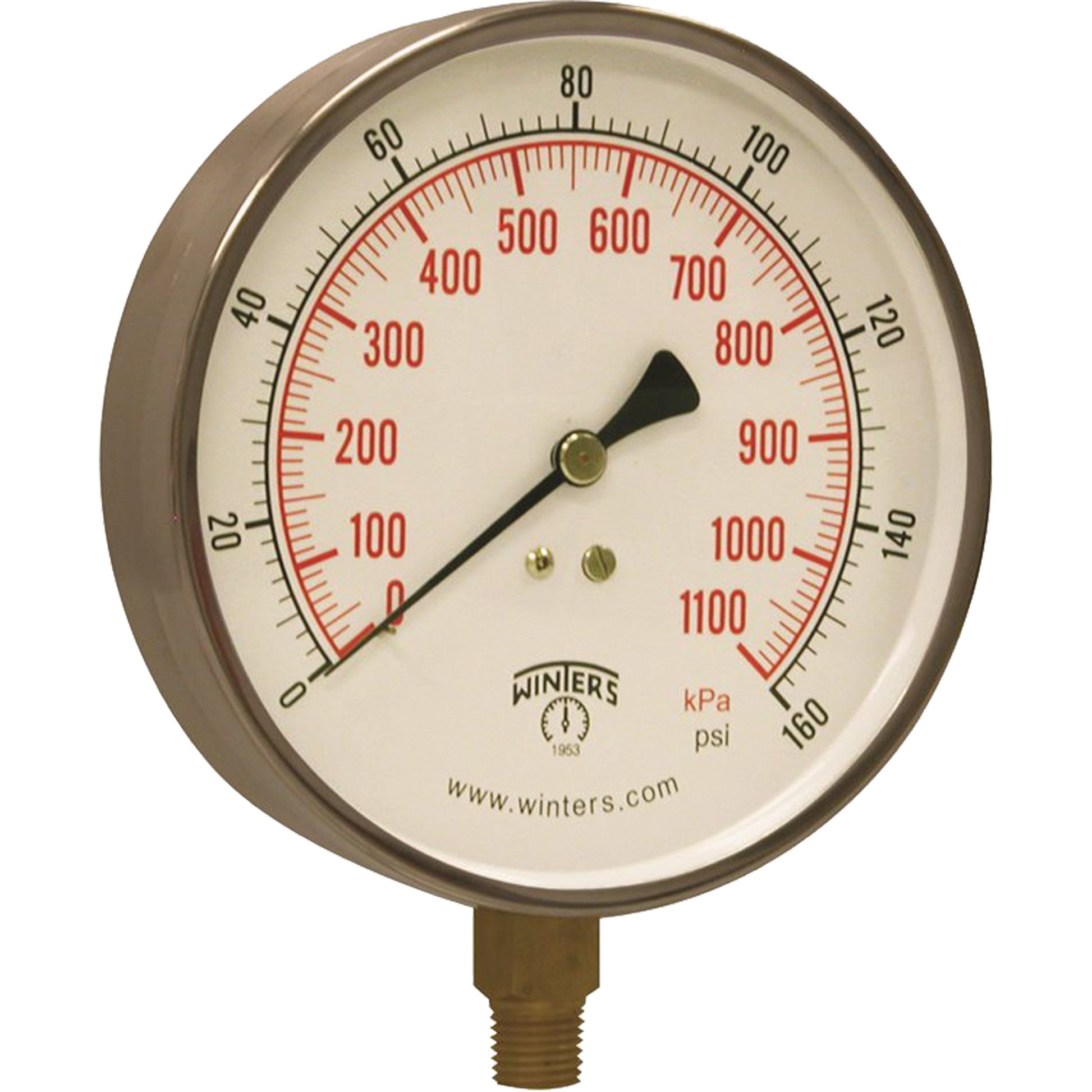

Manómetro para contratistas, 4-1/2", 0-160 psi, montaje inferior, analógico

• Economical stainless steel case gauge with brass wetted parts
• Zero adjustment screw
• Restricted orifice
• ASME B40.100 compliant and CRN registered
• Also measures in kilopascals (kPa)
• Applications include commercial air, water and steam services (with syphon), and more
• Manufacturer's Warranty

Specifications:
Dial Diameter: 4-1/2"
Pressure Range: 0 - 160 psi
Connection: Bottom Mount
Dial Type: Analogue
Connection Thread: 1/4" NPT
Accuracy: ±1% ANSI/ASME Grade 1A
Manufacturer's Warranty: 5 Years
IP Rating: IP52
Case & Ring Material: 304 Stainless Steel
Lens Material: Acrylic
Bourdon Tube Material: Phosphor Bronze
Over-Pressure Limit: 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa)
Working Pressure: Maximum 75% of Full Scale Value
