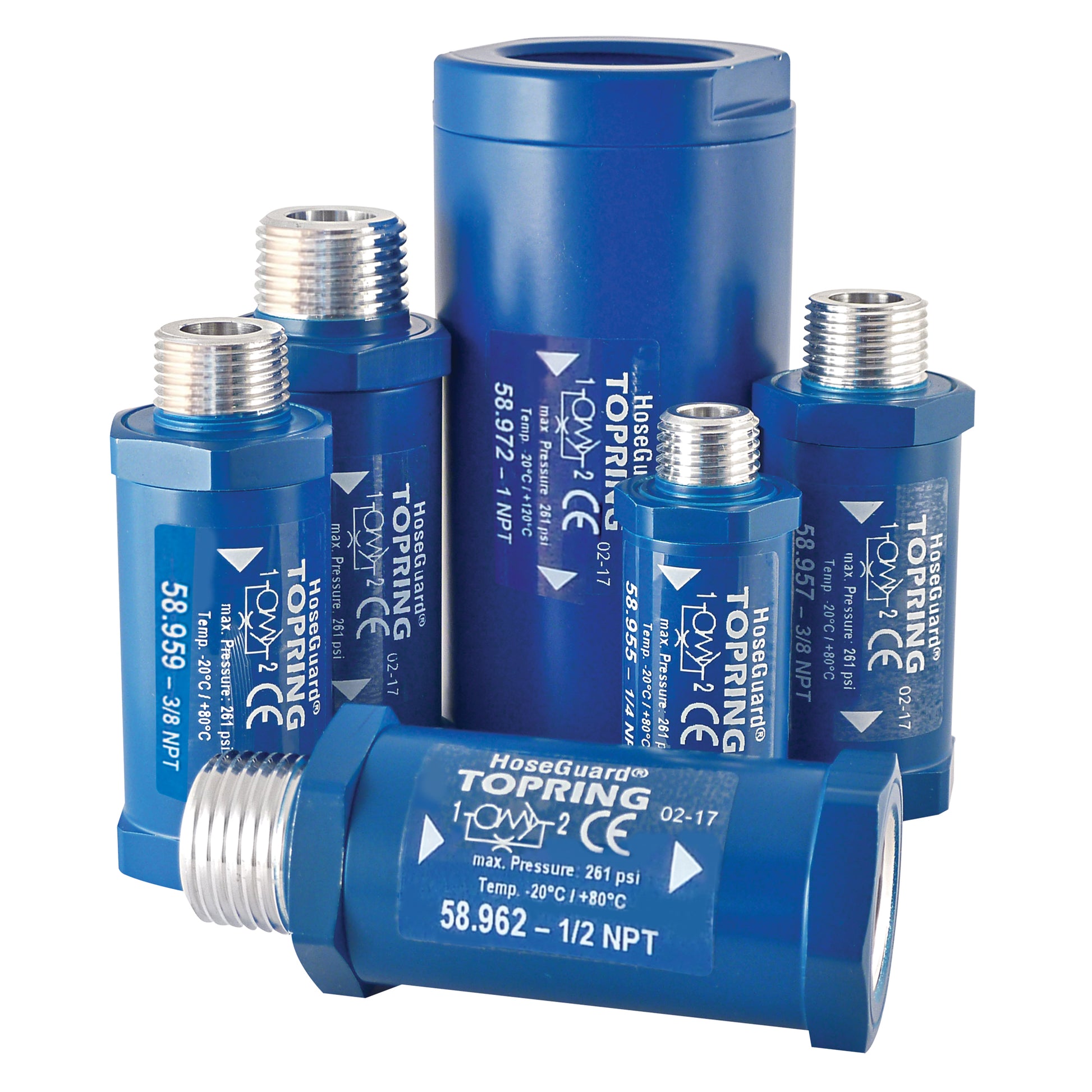

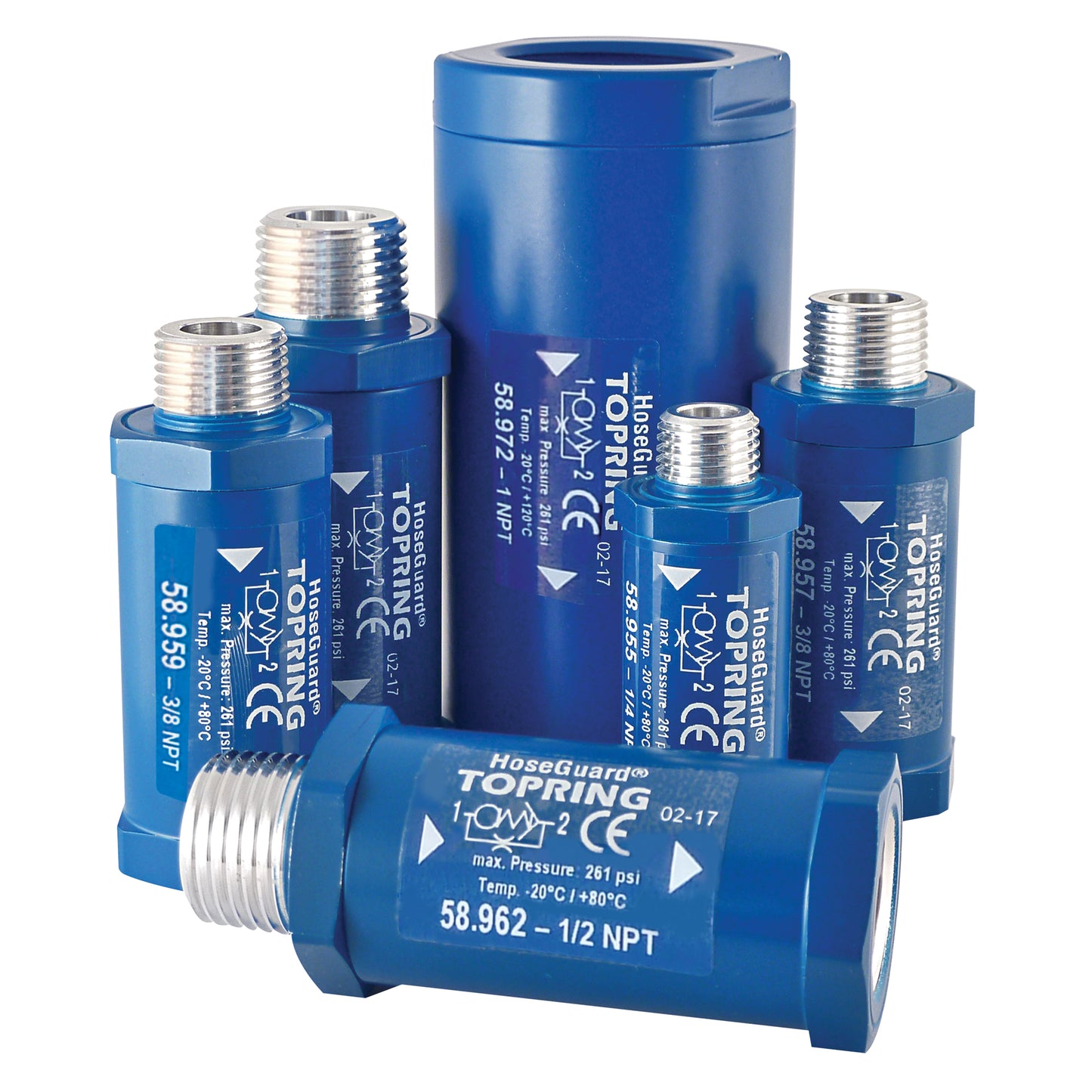

Anti Hose Whip Safety Valves

• Anti hose whip safety valve is an inline emergency shutoff valve
• Under failure conditions, the valve closes - the air is shut off
• Small amount of air continues to bleed after shut off at a rate of 9 SCFM.
• Automatically return to the normal position when pressure is re-established; OSHA standard no. 1926.302(b)(7): "All hoses exceeding 1/2" inside diameter shall have a safety device at the source of supply or branch line to reduce pressure in case of hose failure." Topring anti hose whip safety valves satisfy this standard.
• Extends product life
• Note

Specifications:
Pressure ±3% PSI: 261.0 psi
Port Size NPT: 1/4 (M)
Port Size (F) NPT: 1/4"
Shutoff Range (SCFM): 18
Length": 1.875
Flats": 7/8"
Note: Based on an inlet pressure of 100 PSIG
