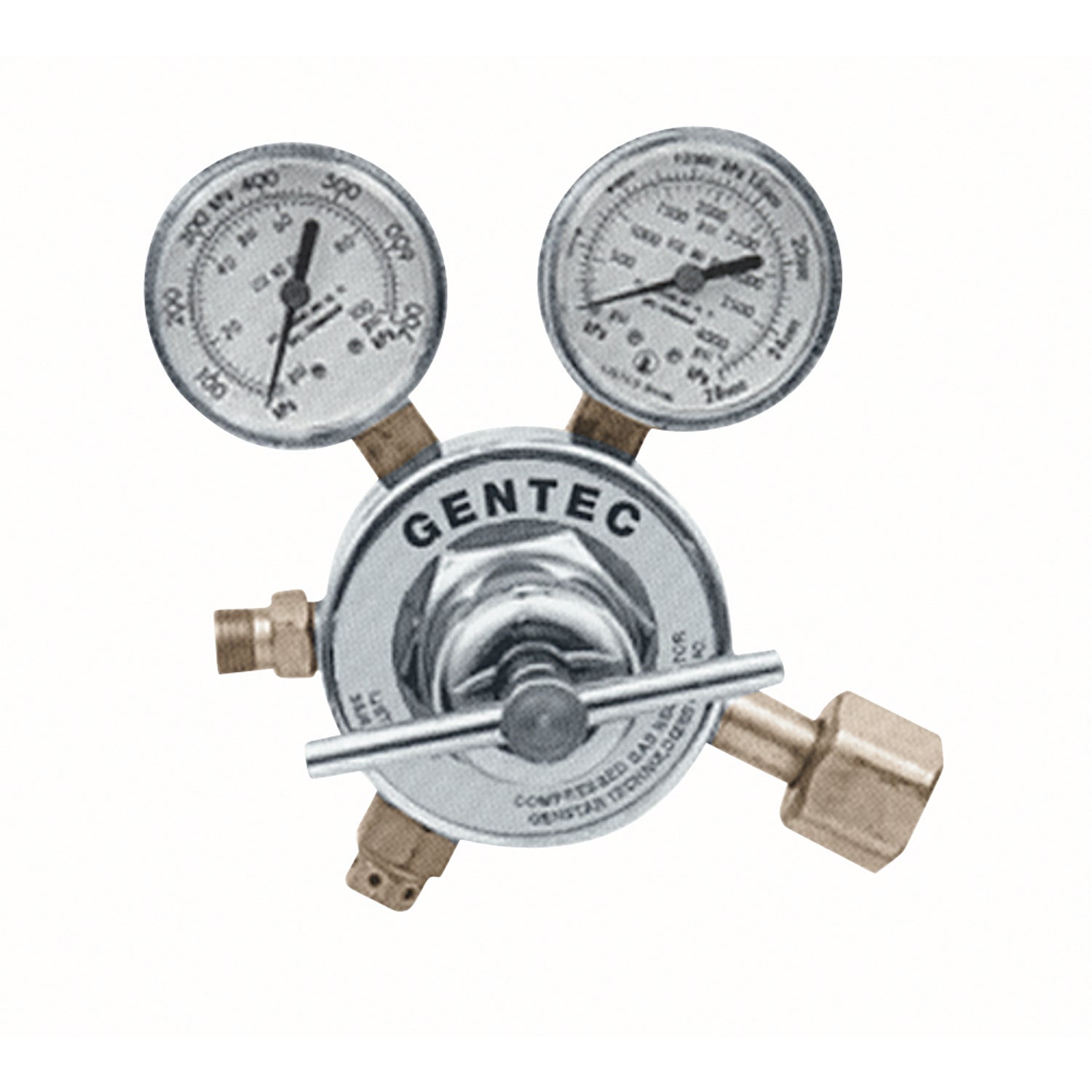

452 Series - Single Stage Regulators, Acetylene, CGA510 Inlet

• Designed for medium to heavy-duty gas welding, cutting and heating applications; the "Horse" is a Harris® style regulator
• 2 3/4" diaphragm and a Victor® style seat mechanism
• 2" gauges for easy reading
• Forged brass body
• Chrome plated housing cap
• Self re-seating external pressure relief valve on oxygen, inert gases and carbon dioxide models
• UL listed

Specifications:
Gas Service: Acetylene
Inlet Connection: CGA510
Max Inlet/Delivery Pressure (PSI): 400/2-15
Inlet Gauge: 2", 400 PSI
Outlet Gauge: 2", 30 PSI, RL
Outlet Connection: 9/16"-18 LH (M)
