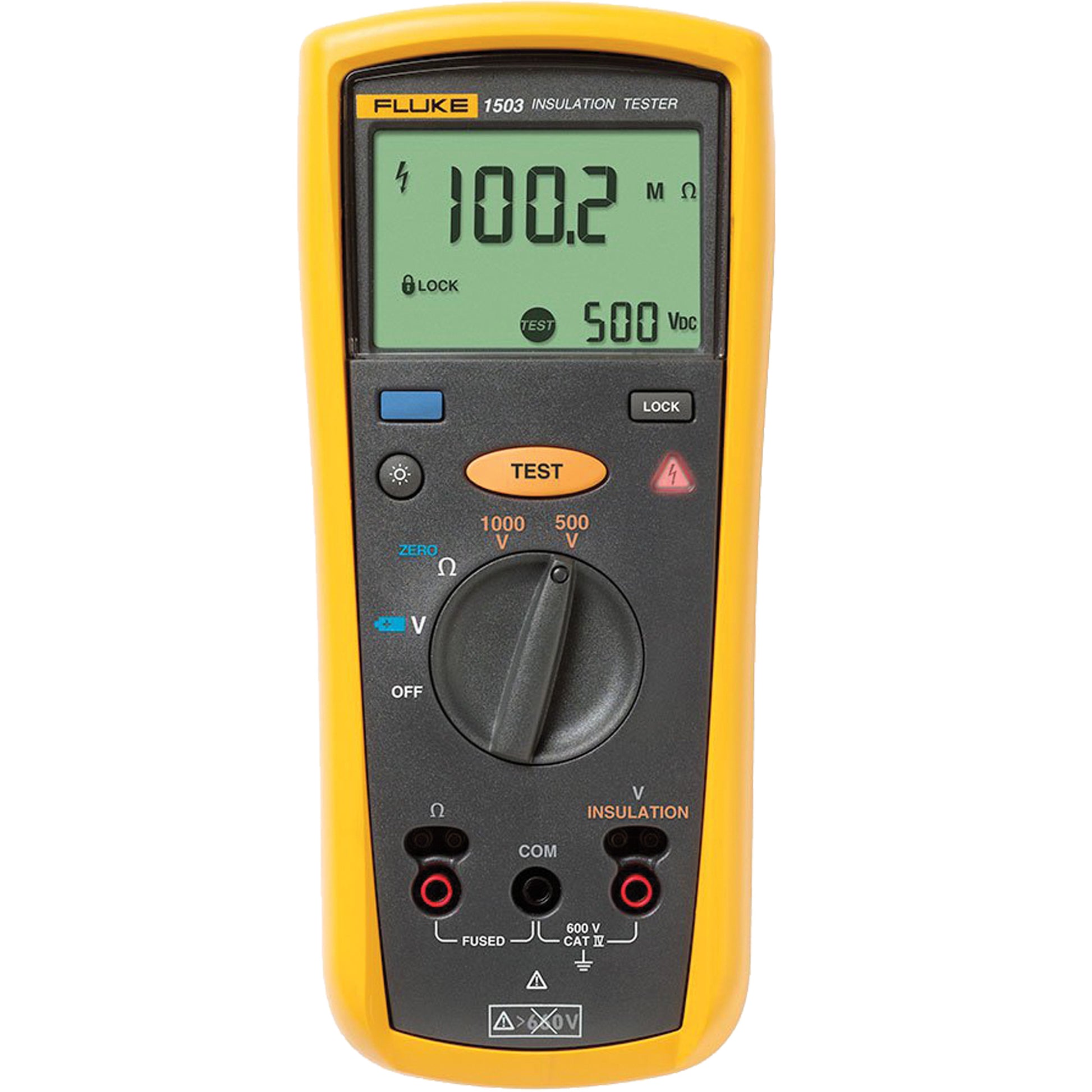

1503 Medidor de resistencia de aislamiento, digital

• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ

Specifications:
Display Type: Digital
Batteries: Four AA
AC/DC Voltage Measurement Range: 600.0 V
AC/DC Voltage Measurement Resolution: 0.1 V
Earth Bond Resistance Measurement Range: 20.00 Ω to 20.00 KΩ
Earth Bond Resistance Measurement Resolution: 0.01 Ω to 0.01 KΩ
