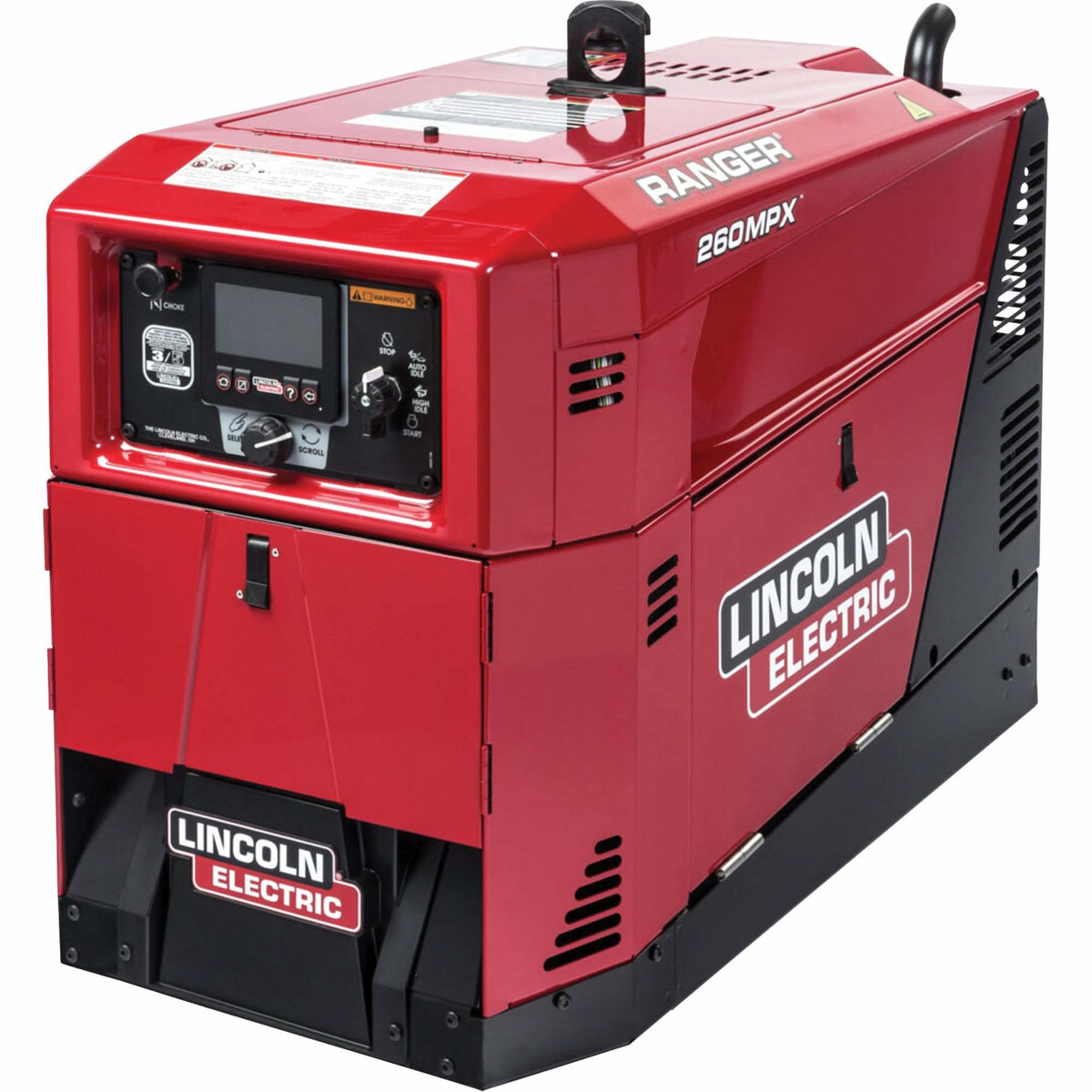

Ranger® 260MPX™ Engine Driven Welder (Kohler®)

• Premium welder/generator with excellent multi-process capability for stick, TIG, MIG while providing clean AC generator output
• Smaller, lighter and quieter than other machines in its class
• Up to 20% smaller meaning more space for additional tools
• Up to 25% lighter for easy maneuverability around the jobsite
• Up to 60% quieter for reduced noise level helps enhance safety and comfort
• Easy-to-read digital screen with simple push-and-turn controls
• Single Phase Auxiliary Output
• Chopper Technology® feature helps improve arc control while the CrossLinc® remote technology allows for arc adjustments at the weld

Specifications:
Dimensions: 26"x 20"x 36 in
Net Weight: 446 lbs (202 kg)
Machines Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating: 231A / 29.2V / 100% @ 104°F (40°C)
Max Rating: 260A / 26V / 100% @ 104°F (40°C)
Output Range By Mode: CC-Stick: 35 –260 Amps, Touch Start TIG: 20 – 250 Amps, CV-Wire: 14 – 28 Volts
Single Phase Auxiliary Output: 9,500 Watts Continuous, 120/240V
Auxiliary Output Frequency: 60 Hz
Receptacle Types: NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
