• Valve Body: Aluminum, Gold Anodized
• Needle Ass'y : Steel, Plated
• Port: 1/4 Dia.

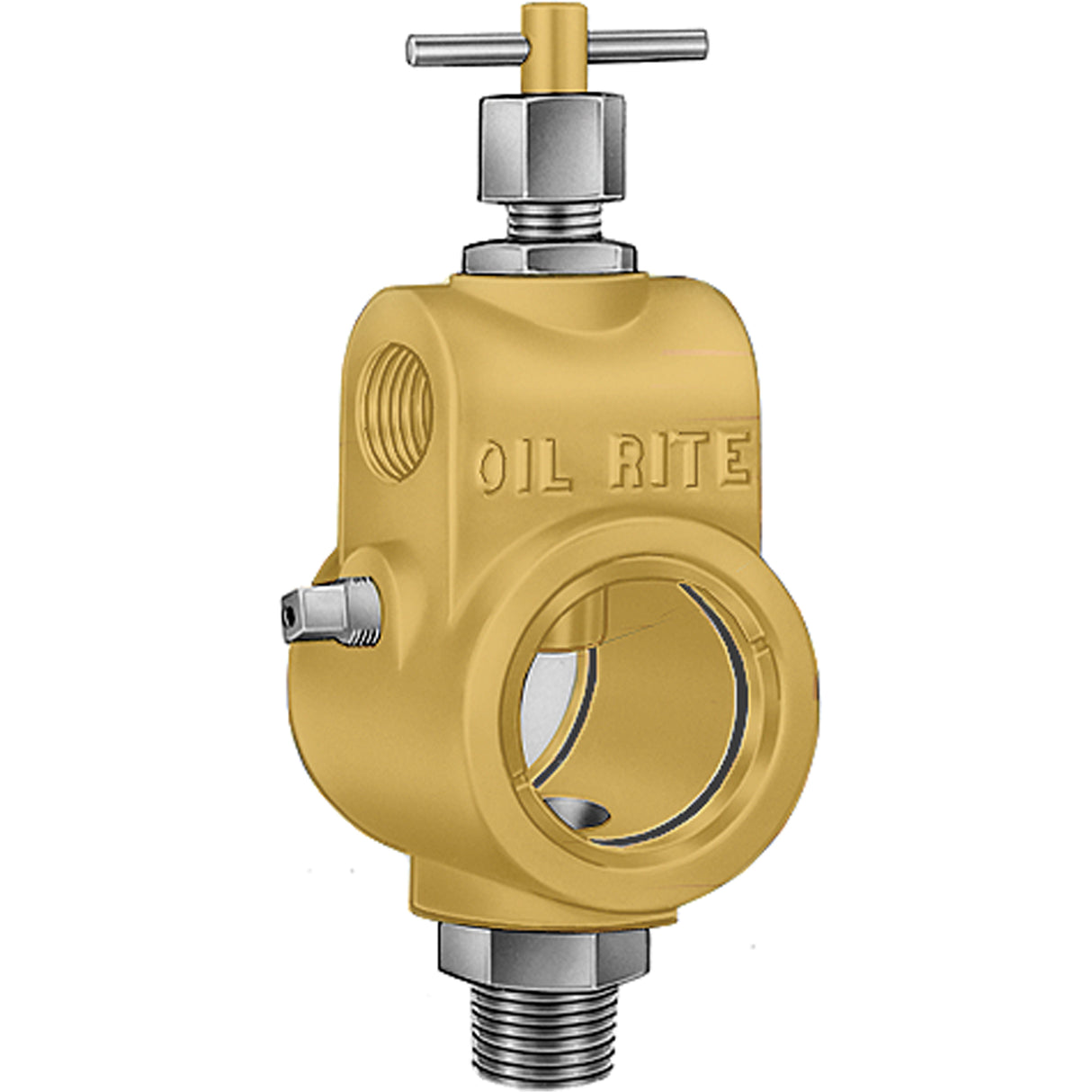

• Sight: 1-1/2 Dia.; Universal Pattern Bulls-Eye Sight Feed Valves allow visual observation of the liquid stream from a distance, with the volume of flow controlled by an adjustable needle valve. The Bulls-Eye Sight Feed Valve has excellent flow characteristics with low pressure drop. These units are principally used on gravity or pressure oiling systems of larger machinery for lubrication where considerable capacities of oil must be dispensed. Large sight glass windows on both sides of the valve are properly gasketed to prevent leakage and permit an excellent observation of the liquid stream. Useful on many applications, it is especially suitable for paper mill machinery, steel mills, rolling mills, steam and gas engines or any bearing where a large amount of oil is required for lubricating and cooling.

Specifications:
Pressure Range: 125 PSI Inlet to Orifice, 55 PSI Sight Chamber
Seal: Buna-N
Sight: Glass
Max. Temperature: 225°F (107.22° C)
