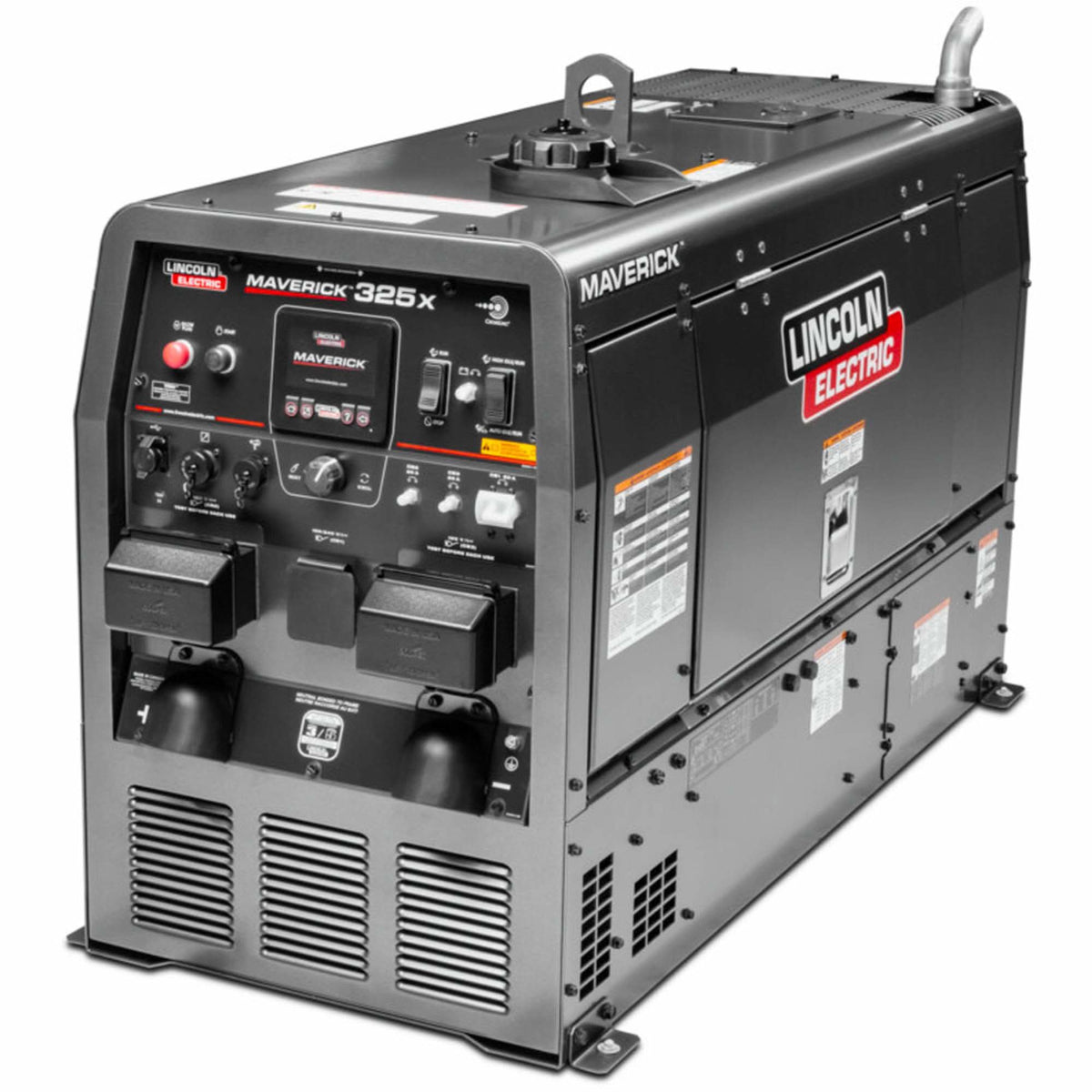

Maverick® 325X Advanced Engine-Driven Welder, 120 V/240 V, 1 Ph, 60 Hz

• Plenty of jobsite power with 325A of welding output and 10 kW of clean, single-phase power
• A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs
• Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization
• Change welding parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality
• Automatically adjusts engine speed to reduce fuel consumption and engine noise
• Save on fuel, avoid excess idling and reduce engine wear
• Open Circuit Voltage

Specifications:
Voltage Input Power: 120 V/240 V
Phase Input Power: 1 Ph
Hertz Input Power: 60 Hz
Dimensions (H X W X D): 34.23" x 21.25" x 54.29" (867 mm x 540 mm x 1379 mm)
Weight: 750 lbs. (340.2 kg)
IEC Rating: 325A / 33V / 100% @ 104°F (40°C)
Open Circuit Voltage: 80 Peak OCV at 3600 RPM
Rated Gouging Carbon Diameter: 5/16" (8.0 mm)
Engine Horsepower: 24.8 hp (18.5 kW)
Receptacle Types: NEMA 5-20R, NEMA 14-50R
Manufacturer's Warranty: 3 Years Parts & Labor
