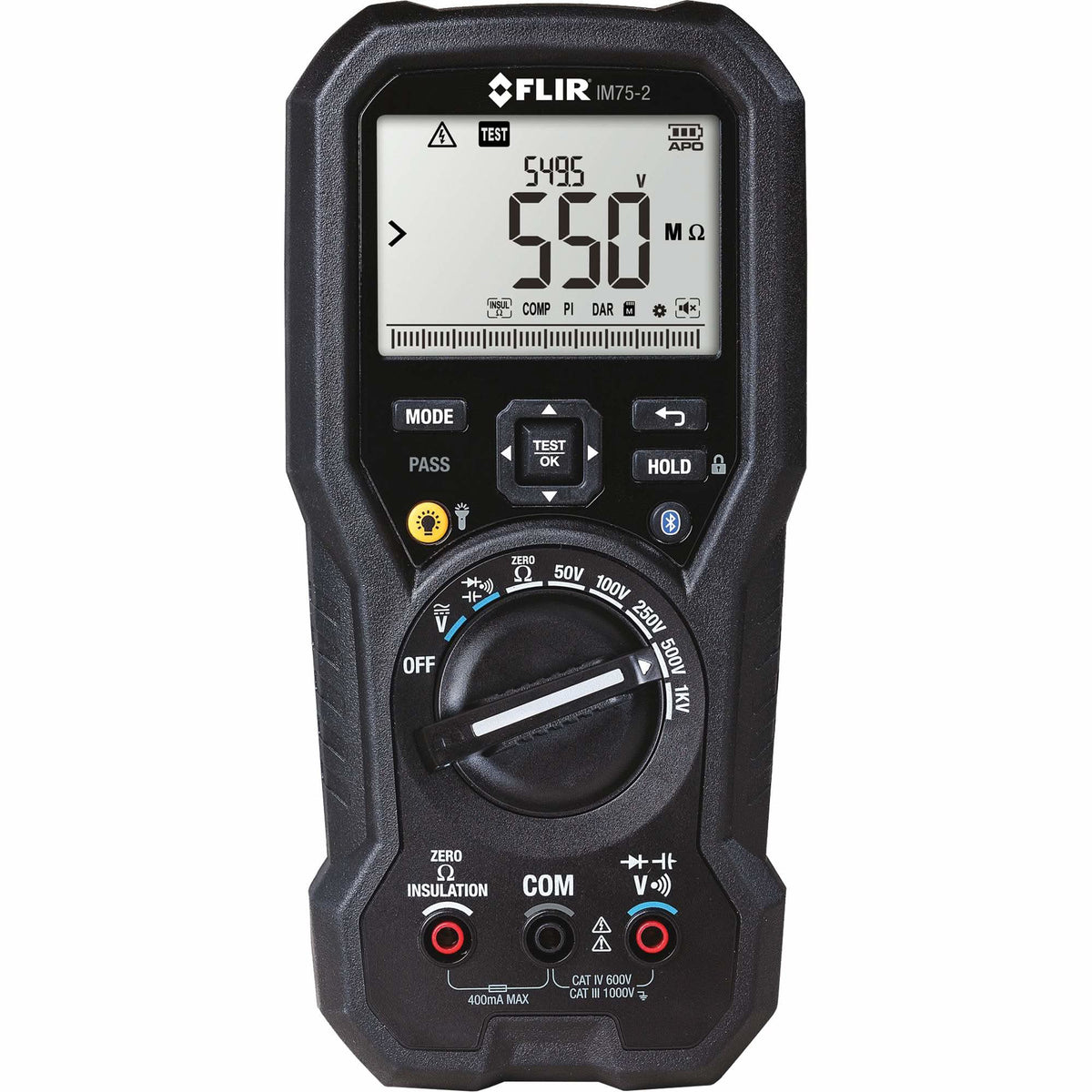

Insulation Tester and Digital Multimeter with METERLiNK®, Digital

• Both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals
• Features several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance
• Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment
• The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible
• Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing
• Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
• Battery Type
• Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once

Specifications:
Display Type: Digital
Insulation Resistance: 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
AC Voltage: 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits)
DC Voltage: 1000.0 V ± (0.1% + 5 digits)
Max. Bluetooth Range: 10 m (32 ft)
Memory: 99 Storage Locations
Battery Type: (6) 1.5 V AAA Alkaline Batteries
Certification(s): FCC Class B, CE, UL, UKCA, RCM
Drop Test: 3 m (9.8 ft)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
