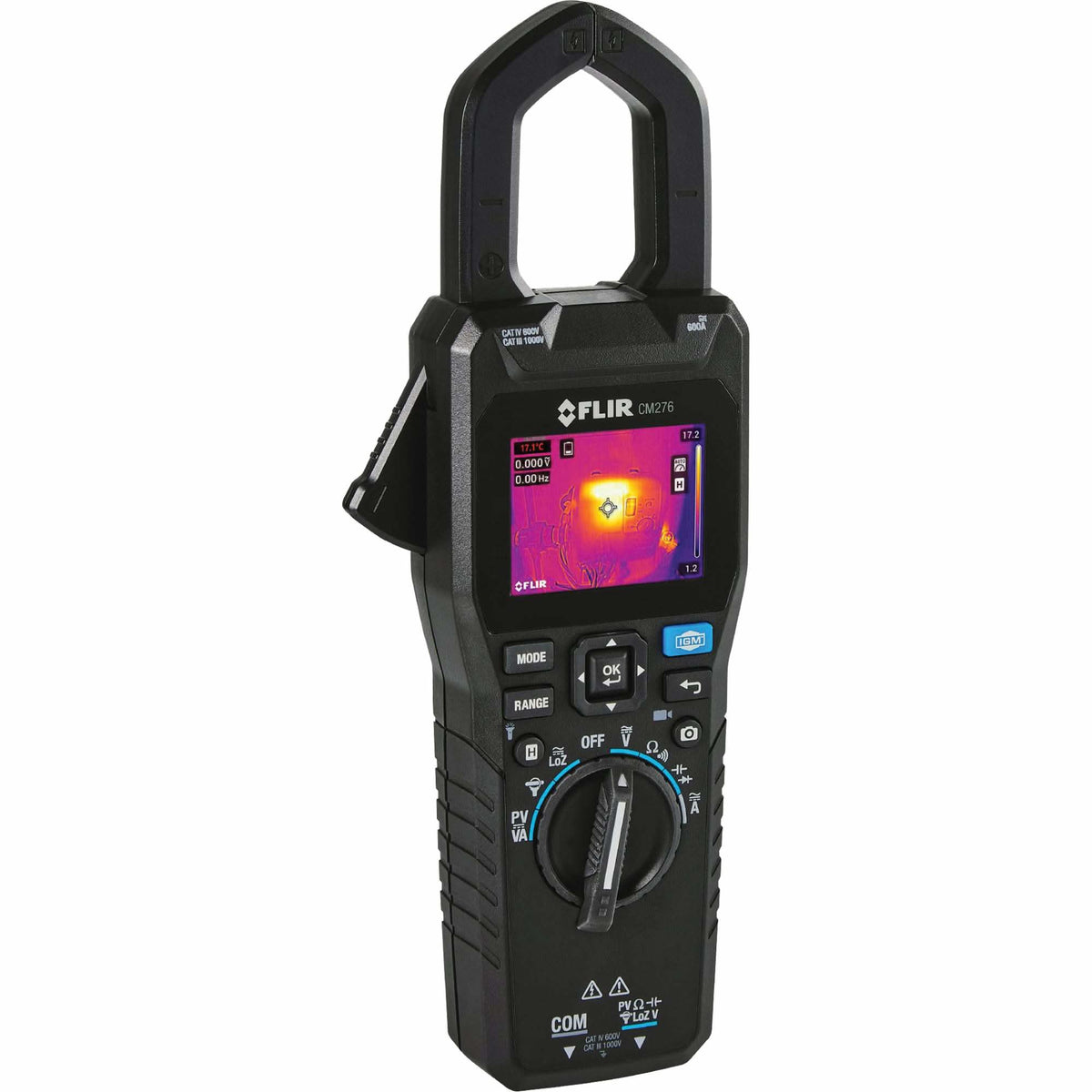

CM276 Clamp Meter & Thermal Imaging Camera with METERLiNK®, 160 x 120 pixels, -10° - 300°C (14° - 572°F), 150 mK

• Combines thermal imaging with electrical measurement for inspecting and troubleshooting electrical systems, solar panels, pumps, and motors
• Through IGM™ (Infrared Guided Measurement), the CM276 provides a reliable way to identify hot spots and overloaded circuits from a safe distance
• Compatibility with the METERLiNK® app provides quick and efficient capture of readings, images, and videos for analysis, trending, and sharing
• Get unmatched clarity and detail in your readings with FLIR MSX®, which embeds and outlines detail onto thermal images
• Built-in LED worklights for better visibility in dark or poorly lit areas, one rechargeable lithium polymer battery pack for all-day operation, and a 2 m (6.5 ft) drop test rating for durability
• Use the FLIR METERLiNK® app to quickly and efficiently capture and store up to 30,000 radiometric images, record thermal and visual video clips, and create reports
• AC/DC Voltage

Specifications:
Display Size: 2.4"
Display Type: Built-in
Resolution: 160 x 120 pixels
Thermal Sensitivity: 150 mK
Temperature Range: -10° - 300°C (14° - 572°F)
Jaw Opening: 35 mm (1.37")
AC/DC Voltage: Range 1000 V / Basic Accuracy ±1.0%
Data Logging & Storage: 10 Sets of 30K Scalar Measurements, 100 Images
Connectivity Type: Bluetooth®
Field Of View (V X H): 44° × 57°
Image Modes: Thermal MSX (Multi Spectral Dynamic Imaging), Thermal Camera Only, Digital Camera Only
Spectral Response: 8µm to 14 µm
Thermal Imaging Detector: FLIR Lepton® Microbolometer
Battery Type: Rechargeable 3.7 V, 5400 mAh LiPo
