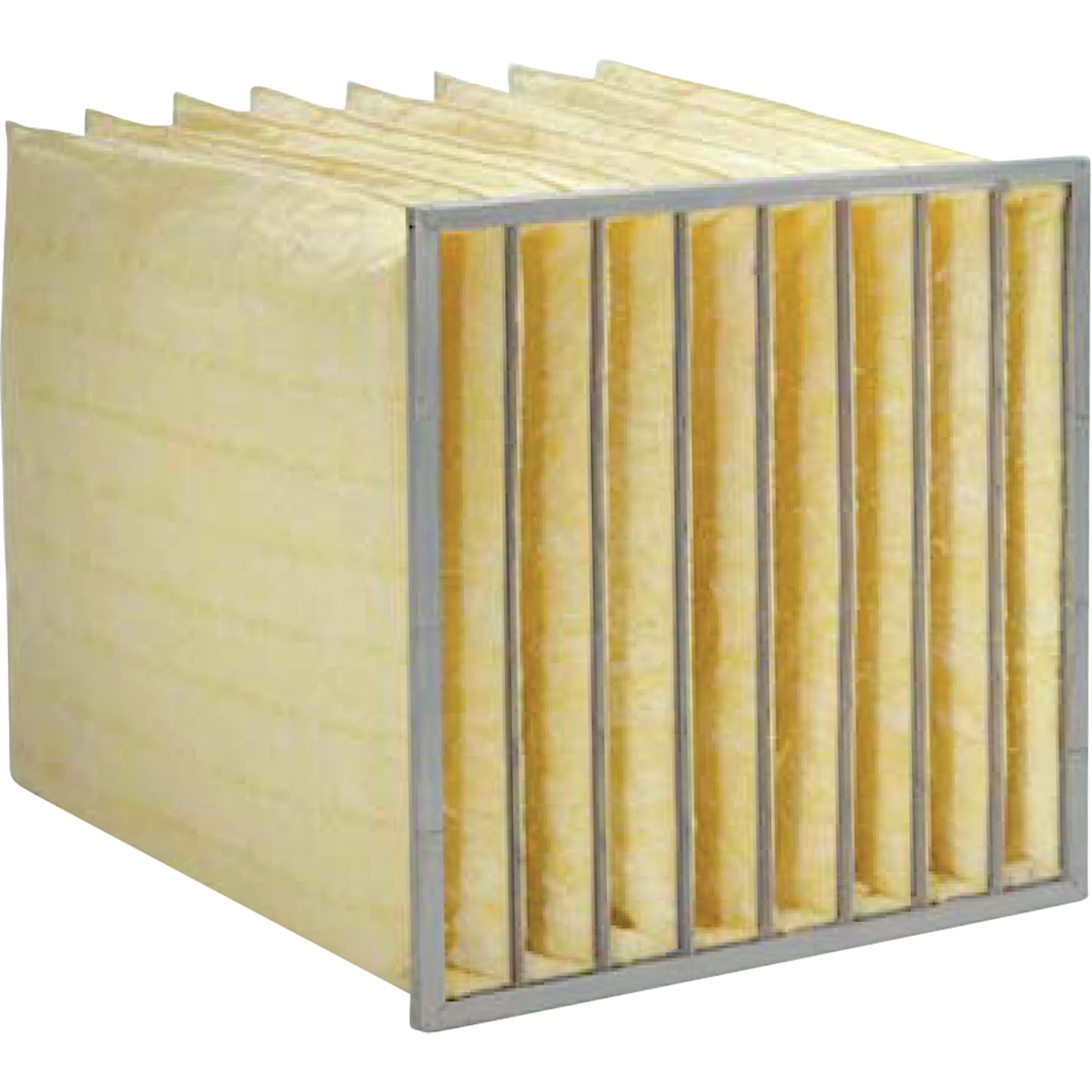

Hi-Flo® Fibreglass Filters, Bag, MERV 14, 24" W x 12" D x 36" H

• Incorporates high lofted air laid micro fibre glass media to ensure reliable efficiency
• Equipped with a high quality filter material, with small fibre diameter and uniform lofting, guarantying a consistent and reliable sub-micron particle capture
• Synthetic micro mesh media backing ensures media protection and support in turbulent or varying airflows
• Particle capture performance and filter configuration are unaffected by dust loading and/or humidity
• Controlled media spacing to minimize pocket-to-pocket contact, ensures uniform airflow and full utilization of the media area ; Application: Built-up filter banks Rooftops Split systems Free-standing units Package systems Air handlers Buildings Pharmaceutical Research; ; Note: Initial resistance to airflow (inches w.g.)
• Resistance Low

Specifications:
Width: 24"
Depth: 12"
Height: 36"
MERV Rating: 14
Filter Type: Bag
MERV Rating: 14
Resistance Low: 0.45
Resistance High: 0.64
No. Of Pockets: 3
CFM Low: 750
CFM High: 1000
