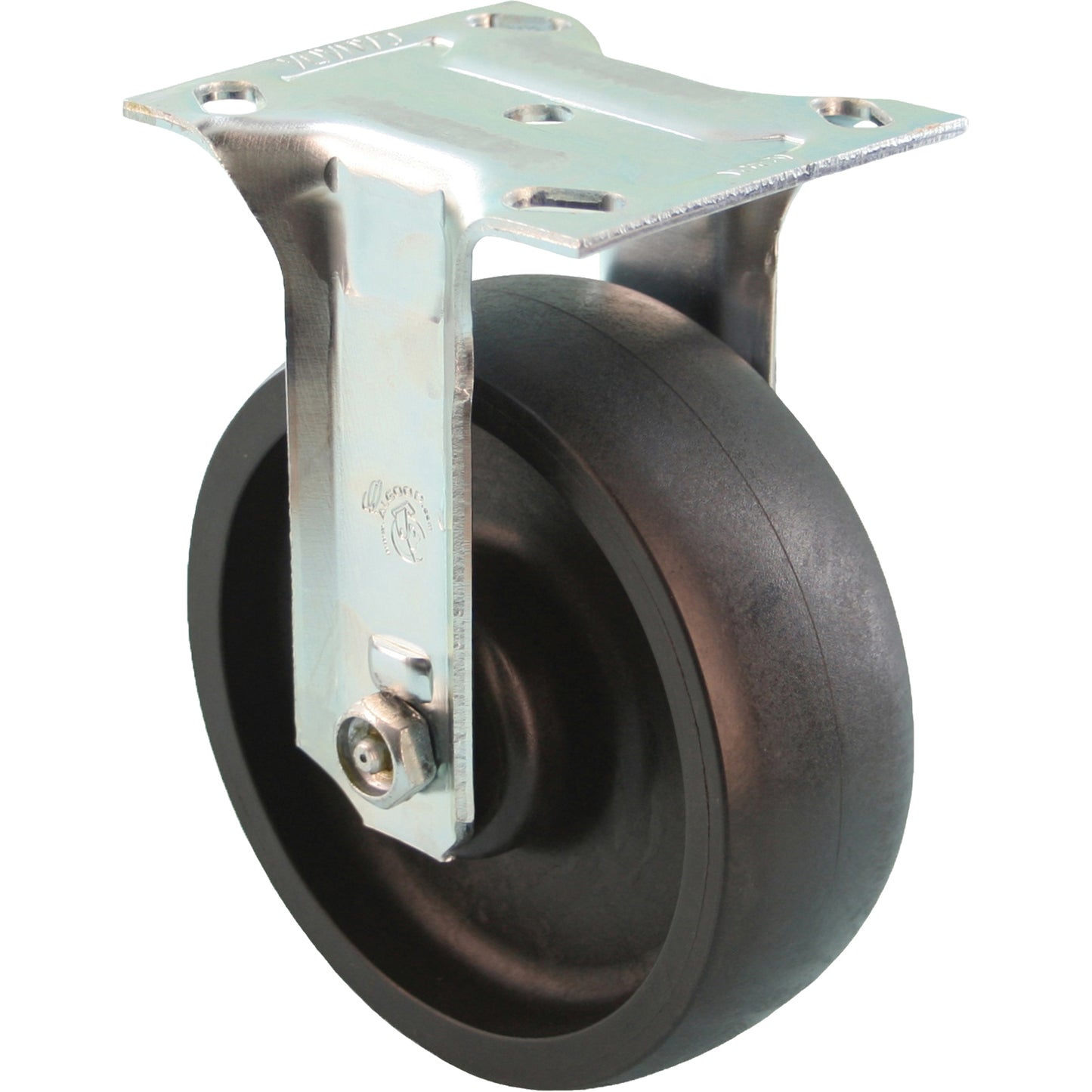

5400 Series Lava™ Caster, Rigid, 4" (101.6 mm), High Temp Nylon, 700 lbs. (317 kg.)

• 9/16" diameter rivet
• 3/8" drilled axle and lock nut
• Corrosion resistant bright zinc finish
• 1/4" diameter upper raceway
• 1/4" diameter lower raceway (equal diameter raceway)
• Excellent for: Platform trucks, food service equipment, hotel equipment, factory use, textile carts
• Bolt Hole Spacing

Specifications:
Wheel Diameter: 4" (101.6 mm)
Capacity: 700 lbs. (317 kg.)
Wheel Material: High Temp Nylon
Caster Type: Rigid
Frame Material: Steel
Tread Width: 1-1/2" (38 mm)
Bolt Hole Spacing: 3" x 2-5/8" (76.2mm x 50.8mm)
Bolt Hole Size: 3/8" (9.52 mm)
Plate Size: 4-1/2" x 3-27/32" (114.3mm x 98mm)
Durometer: 85
Outside Bolt Hole Spacing: 3-5/8" x 3"
Bearing Type: Roller
