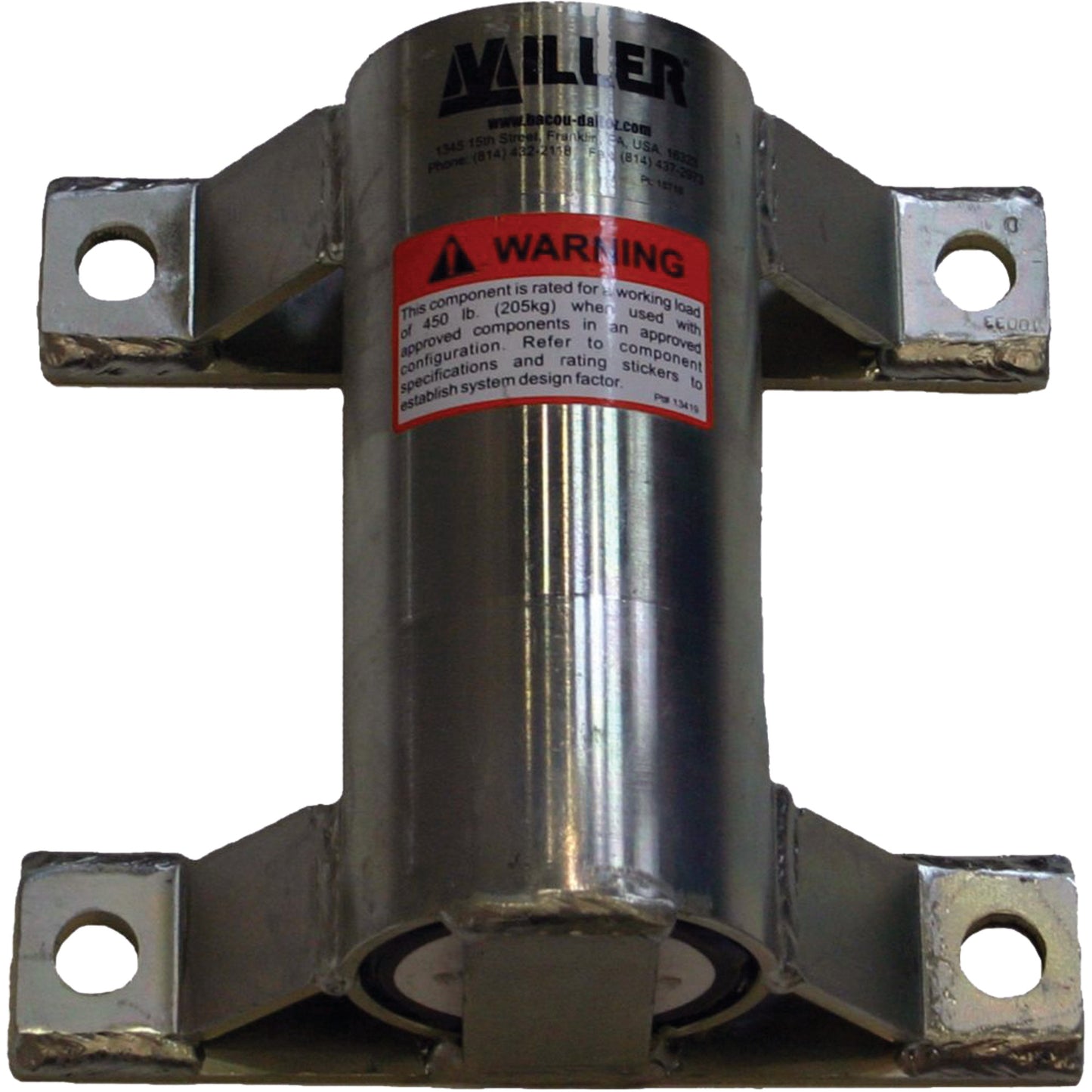

Miller® Wall Mount Sleeve

• Compact design creates minimum intrusion into work space
• Mounts to vertical concrete or steel structures
• Comes with PVC sleeve liner
• Rated capacity of 450 lbs./204 kg working load limit @ minimum 4:1 Design Factor
• Mast Moment Proof Load

Specifications:
Finish: Zinc Chromate
General Construction: Welded Steel
Weld Certification: AWS
Material Structure: Sch.40 Pipe
Sleeve Bearing Material: PVC Pipe
Thrust Bearing Material: High Density Polyethylene
Mast Moment Proof Load: 90,000 in-lbs (10,200 N.m)
Mast Rotation: 360°
Weight: 12 lbs. (5.4kg)
