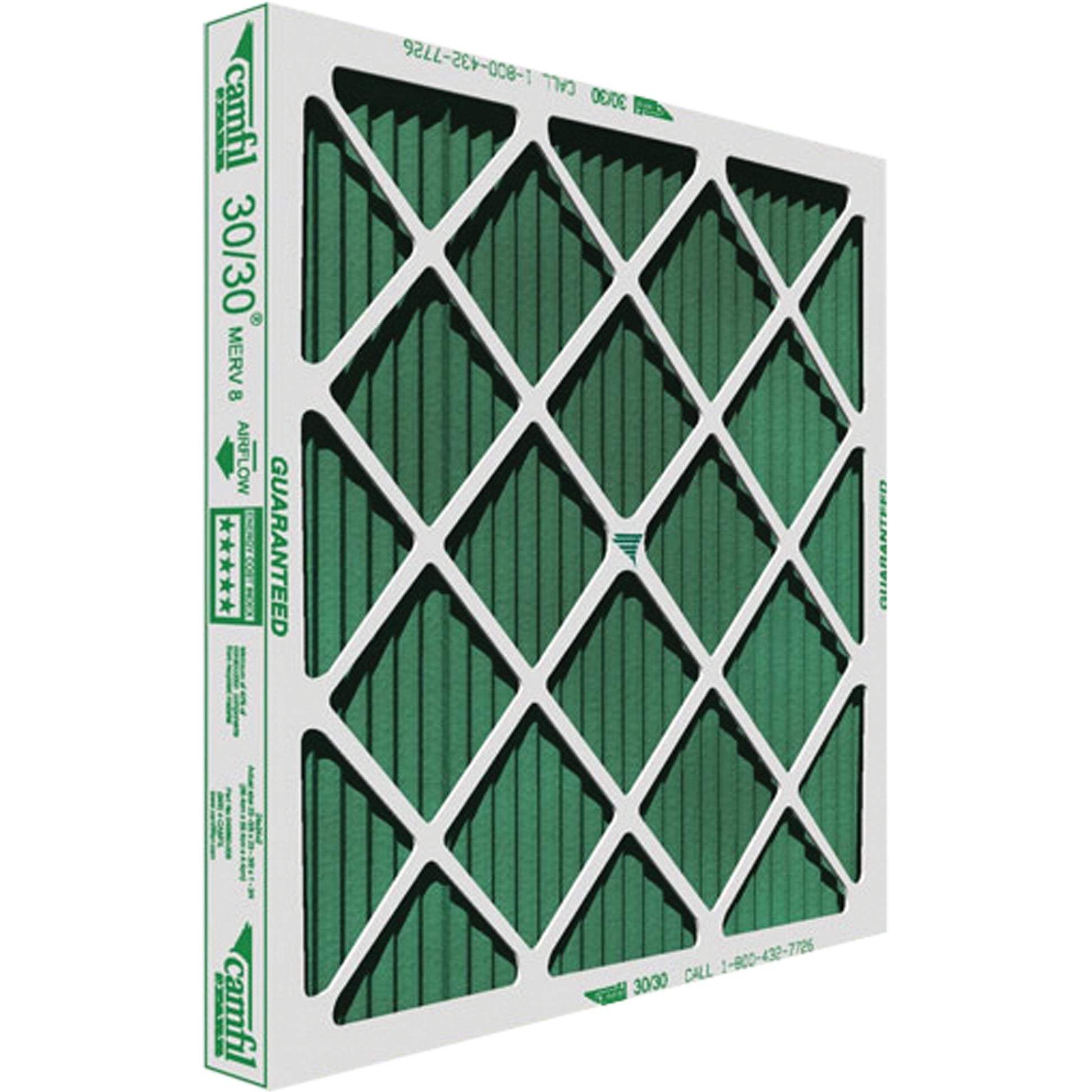

30/30® High-Capacity Pleated Panel Filters, Box, MERV 8, 16" W x 4" D x 20" H

• High capacity pleated panel filter available in 1", 2" or 4" depths
• A welded wire grid to maintain the radial pleat and eliminates distortion of the media pack even under turbulent or high airflow conditions
• Exclusive MERV 8 Media, blended from cotton and polyester fibres, providing consistent dirt removal efficiency throughout the life of the filter
• The 30/30 meets today's medical facility requirements
• A low initial and maintained low resistance to airflow, over the life of the filter that saves energy dollars
• A high wet-strength beverage board frame for maintained filter rigidity in any application
• CFM High
• Proprietary blend of cotton and synthetic fibres in a uniform lofted media blanket; ; Efficiency: Value of 8 for MERV and MERV-A when evaluated under ASHRAE Testing Standard 52.2.; ; Typical applications: Pre-filters to higher efficiency filters, stand-alone filter for rooftops, split systems, free-standing units and package systems and air handlers. Ideal for commercial, industrial, institutional or any other application where the ultimate level of protection of equipment and indoor air quality is a concern.; ; Note: Initial resistance to airflow (inches w.g.) Other sizes also available.

Specifications:
Width: 16"
Depth: 4"
Height: 20"
MERV Rating: 8
Filter Type: Box
CFM Medium: 550
CFM High: 1110
Resistance Medium: 0.07
Resistance High: 0.27
Media Area Sq.ft.: 15.7
Pleats/foot: 11
