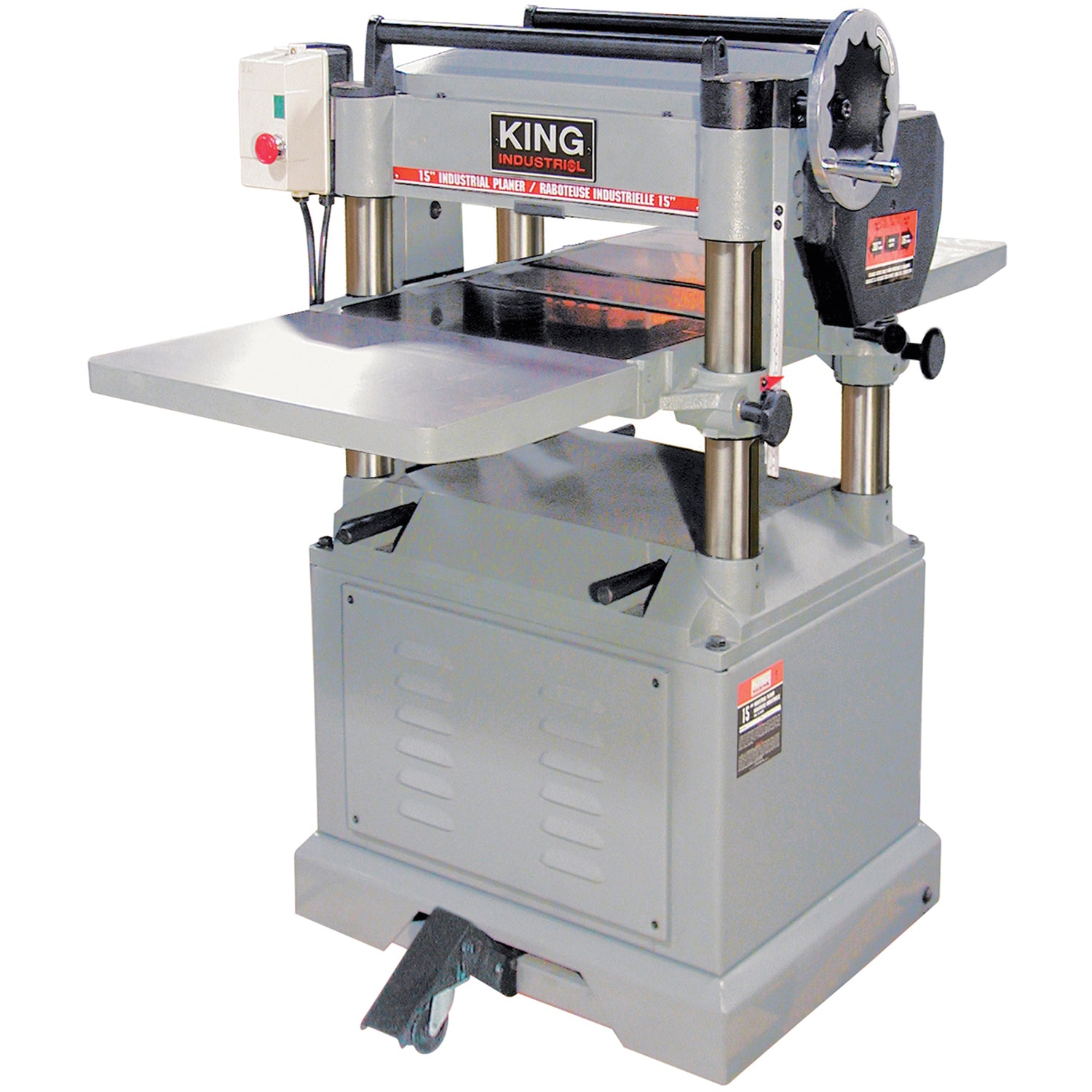

Planer, 42" W x 32-1/2" L x 45" H
Description
Description
• 3-knife cutterhead
• Table raises and lowers on four precision ground columns for extra stability
• Anti-kickback fingers in front of the infeed roller to prevent wood kickback
• Magnetic safety switch
• Stock returns rollers on top of planer for multiple passes
• Extension tables provide support for longer material
• Cutter Head Speed
• Knives rest on adjustable jack screws; lock bar and lock screws keep knives in place
Specifications:
Overall Width: 42"
Overall Length: 32-1/2"
Overall Height: 45"
Max Planning Width: 15"
Max Planning Thickness: 6"
Max Depth Of Cut: 1/8"
Cutter Head Speed: 5000 RPM
Cutter Head Dia.: 2 7/8"
Number Of Knifes: 3
Feed Rate: 2 (16/30) FPM
Number Of Cuts/inch: 78/63
Motor: 3 HP, 15 A, 1 phase, 60 Hz
Voltage: 220 V
