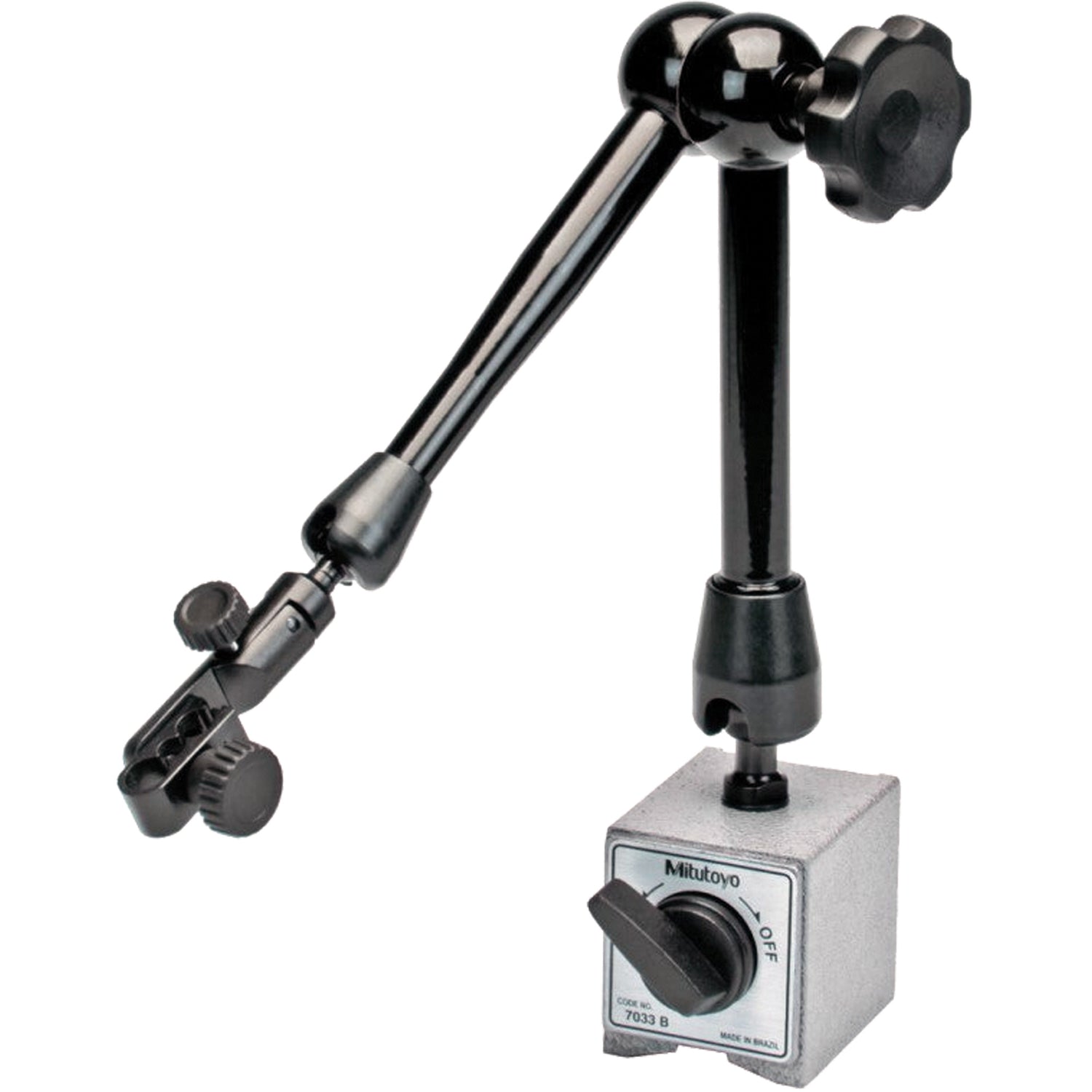

Jointed Magnetic Stand for Dial Indicator
Description
Description
• Comes with a mechanical locking system and allows fine adjustment
• You can also fix a dial indicator in any position by mechanically clamping the articulated arm
• Thread Arm/Base
Specifications:
Magnetic Force (Vertical): 600 N
Base Size: 59mm L x 50mm W x 55mm H
Total Height: 425 mm
Fine Adjustment Degree: ±4
Stem Hole Diameter: 6 mm, 8 mm, 9.53 mm
Working Radius: 352 mm
Thread Arm/Base: M8 x 1.25
