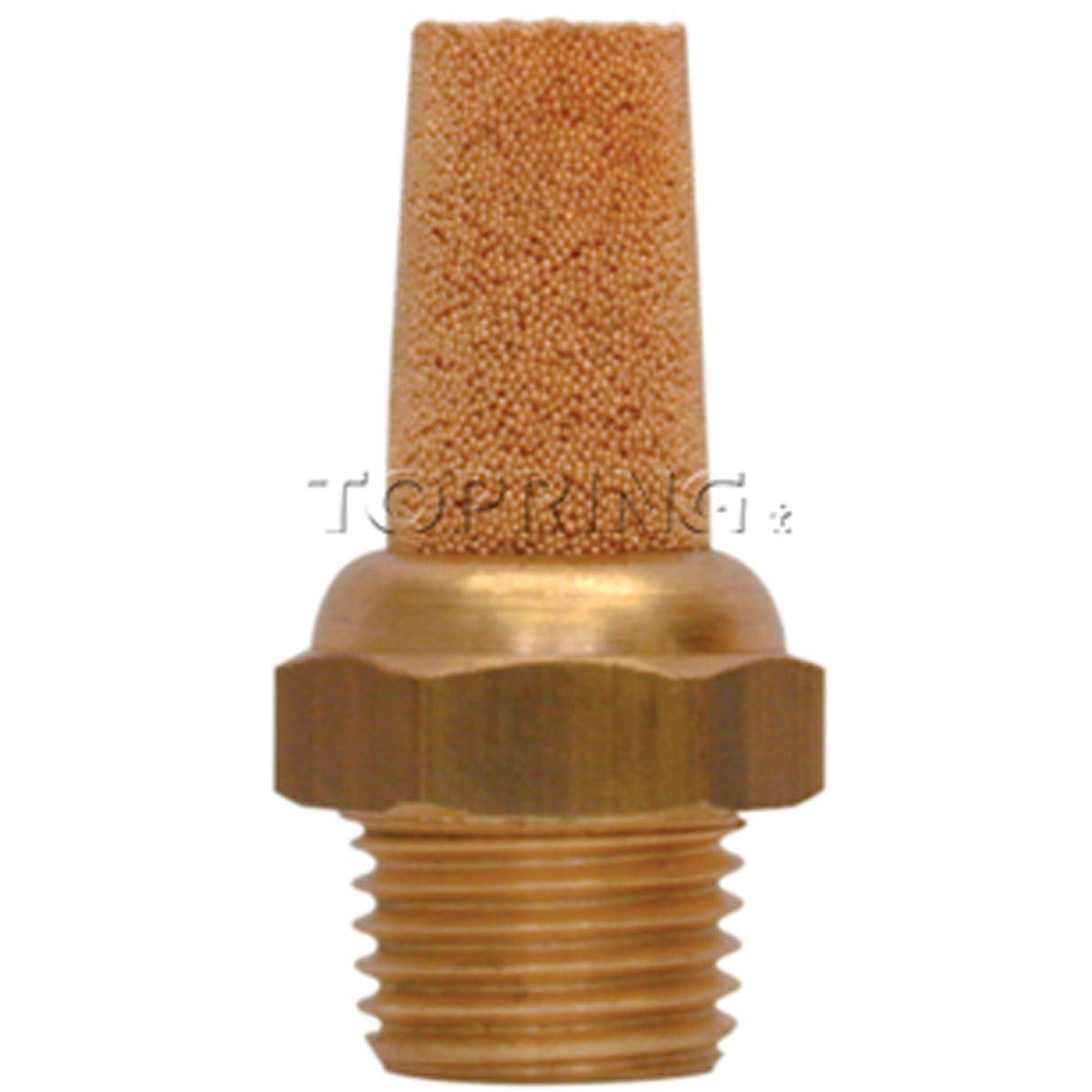

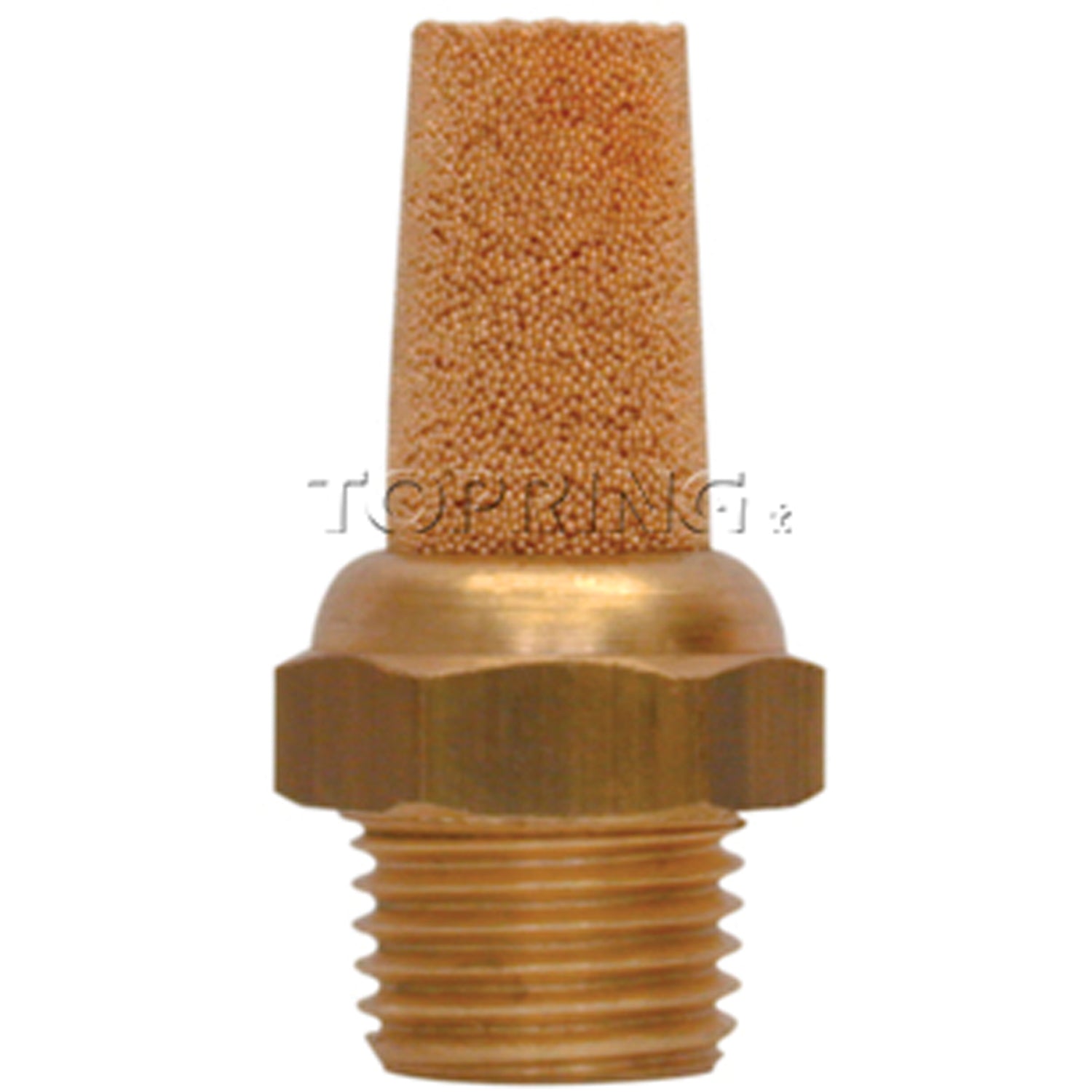

• Diffuses air and disperses noise from the exhaust ports of valves, cylinders and air tools
• Compact, ideal for use in limited spaces
• Easy to install and maintain
• Tough, cellular, sintered metal structure, secured to metal body, providing an ideal combination of strength and performance
• Can be used as filters for compressed air
• Prevents contaminants like metal chips, abrasive grit, dust from entering open exhaust ports and causing premature valve failure
• Features recyclable, biodegradable, and/or recycled content

Specifications:
Air Inlet: 3/8" NPT
Muffler Material: Bronze
Maximum Working Pressure: 116 PSI
Working Temperature: -10 to 250 °C
Airflow At 90 PSI: 102 SCFM
