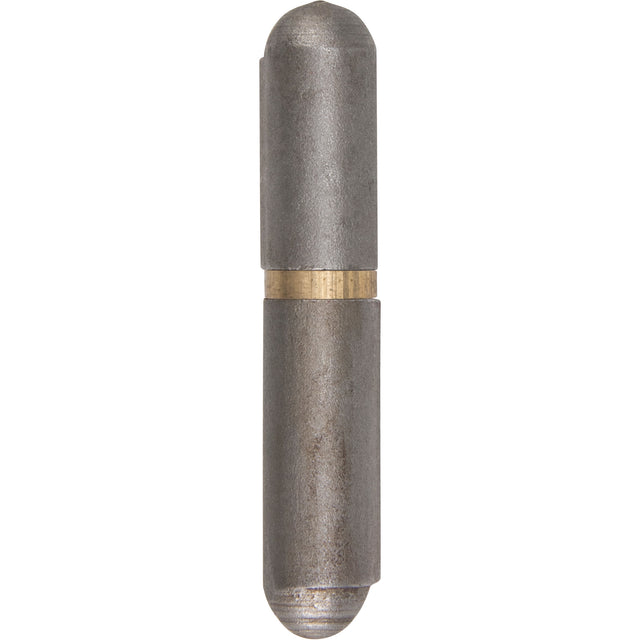

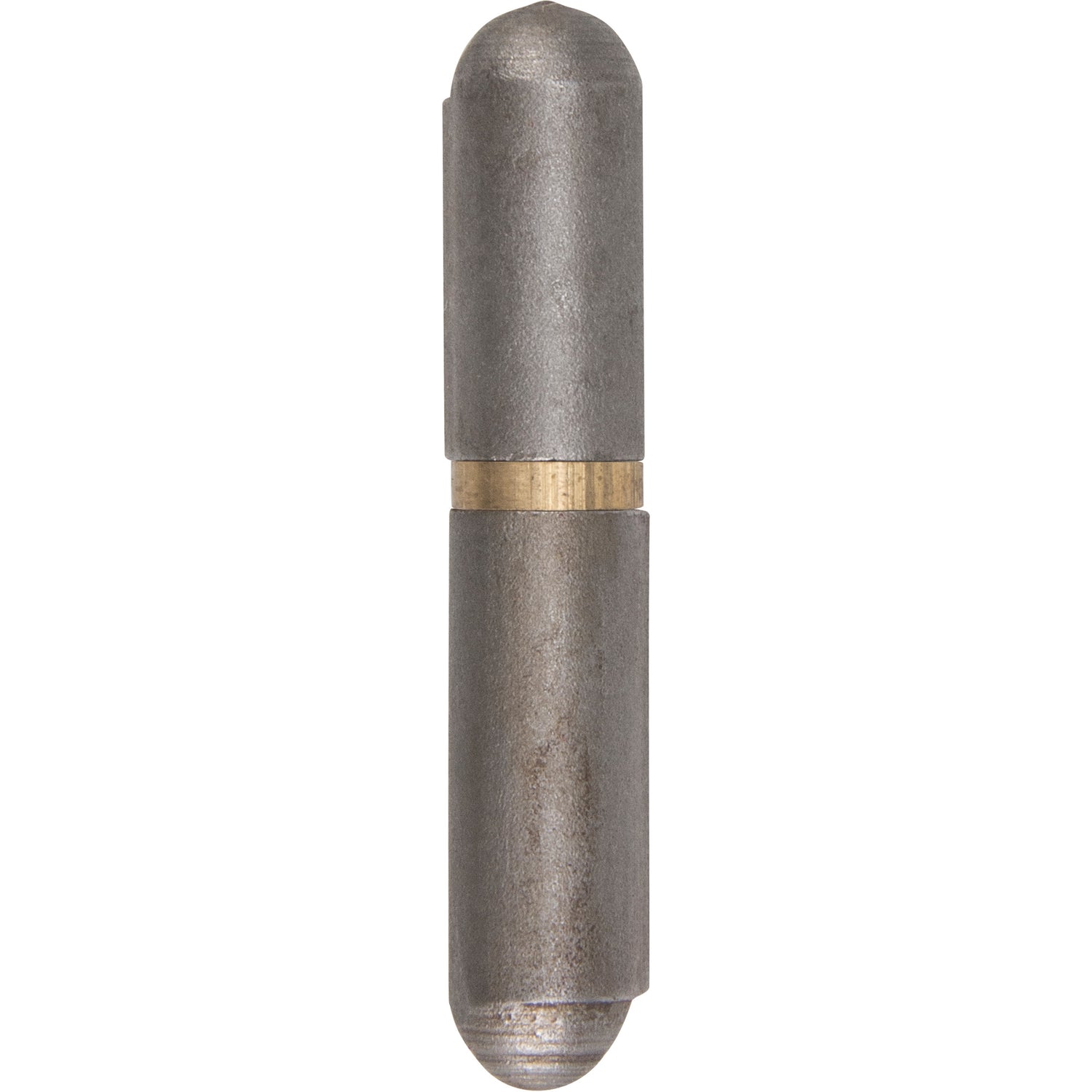

Weld-On Hinge, 0.315" Dia. x 1.575" L, Mild Steel w/Fixed Steel Pin
Weld-On Hinge, 0.315" Dia. x 1.575" L, Mild Steel w/Fixed Steel Pin is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Once your order is confirmed, an Estimated Time of Arrival (ETA) will be sent separately via email.
Weld-On Hinge, 0.315" Dia. x 1.575" L, Mild Steel w/Fixed...
Description
Description
• Ideal for gates, machinery doors, BBQ pits, electrical boxes, trailers and more
• Can be painted to match the door and frame
• Hinges are specially buffed and are free of burrs, allowing for improved paint adherence
• Comes standard with rounded ends and with/without grease fittings
• Installation: Ensure the hinge is welded along the full length of the weld tab
• Component replacement parts are available
• Grease Fitting
Specifications:
Frame Material: Mild Steel w/Fixed Steel Pin
Length: 1.575"
Diameter: 0.315"
Bushing Material: Brass
Pin Diameter: 0.197"
Thickness: 0.374"
Grease Fitting: Not Included
Manufacturer's Warranty: 1 Year Limited
