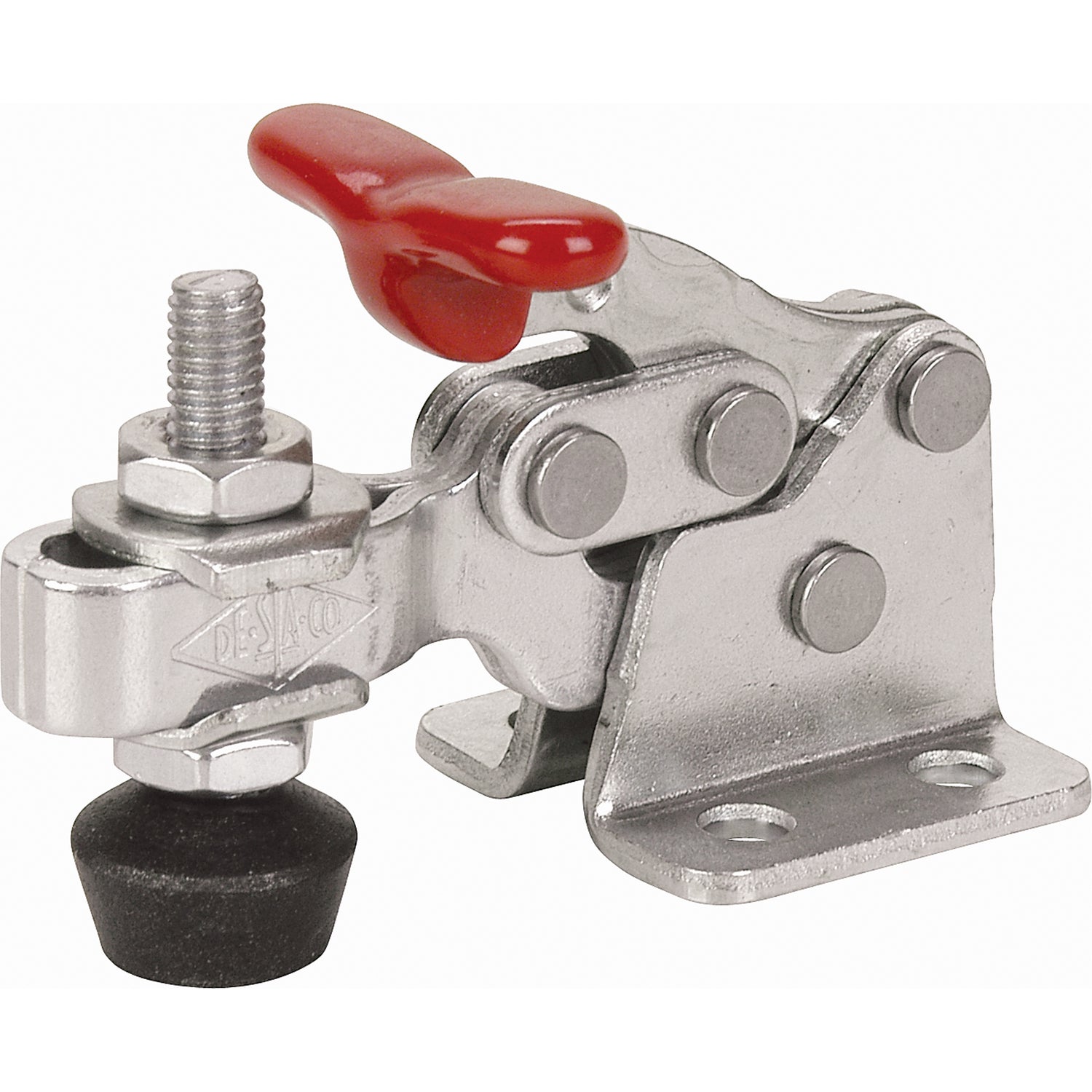

• Low height design makes clamps outstanding when headroom is a concern. Unlike the handle on the vertical clamp, the horizontal clamp moves in the opposite direction. Hold down bar available in solid or U-shaped format. Some models available in stainless steel on request. Holding capacities to 500 lbs. Larger capacities available. Feature a handle that can be operated from either side or from behind. U-bar model includes bonded neoprene-tipped spindle (TN140) and flanged washers (TN121).
• Base L" X W"

Specifications:
Style: Horizontal
Clamping Force: 150 lbs.
Dimensions" A: 1.375"
Dimensions" B: 2.25
Dimensions" C: 1/2"
Dimensions" D: 1/2"
Base L" X W": 1 1/32 x 1
Weight: 0.13 lbs.
